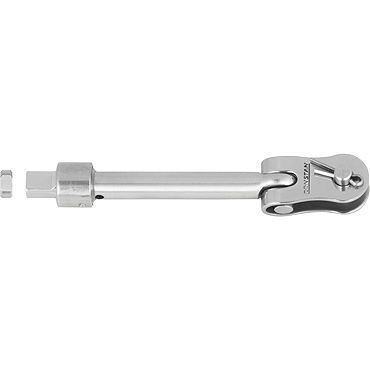

Turnbuckle Body, Lock Nut, 7/8" Thread
Stock Code:
RF1480-14
Price:
$523.05
FEATURES
- Sleek modern profile
- Easy to adjust than conventional turnbuckles due to fine thread and single end adjustment
- Threads are UNF (Unified National Fine), short pitch threads for fine adjustment and reduced adjustment effort
- Easier to adjust than conventional turnbuckles due to single take-up by turning the unique adjustment nut
- Lock nut included to secure desired length
- Site hole to indicate minimum terminal engagement
- Use of dissimilar but compatible metals avoids the risk of thread seizure
- Toggle end provides full lateral articulation and connection compatability
- Threaded eye, toggle and swage terminal end options available
| Thread | 7/8" UNF |
|---|---|
| Adjust. Length | mm |
| A | 26.6 mm |
| B | 28.5 mm |
| C | 348 mm |
| D | 44.4 mm |
| E | 22.0 mm |
| B. L. | 17230 kg |
| Weight | 2444 g |
